SMT/PCBA Assembly
One-stop PCBA Solution Provider

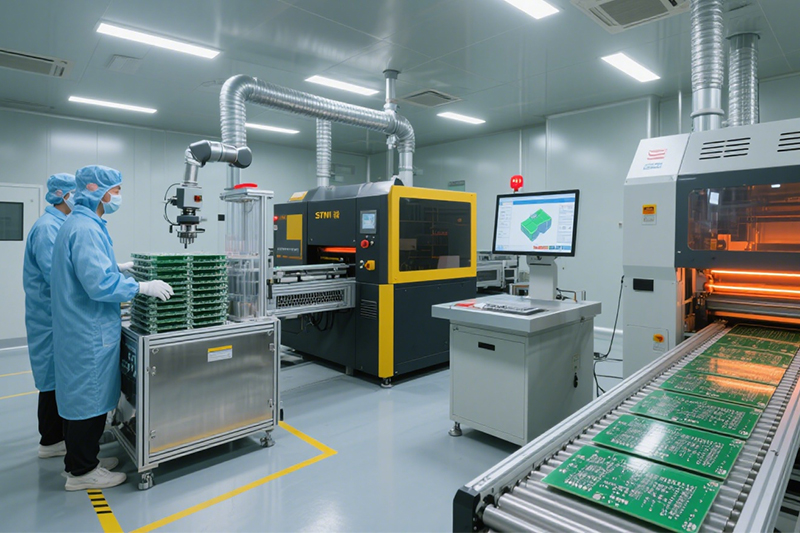

SMT Technology

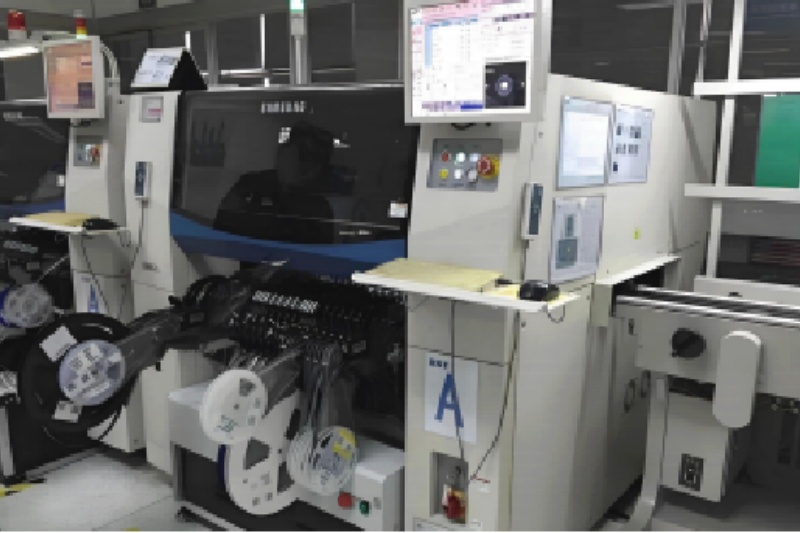

20 highly precise automatic production lines, including fully-automatic loader, fully-automatic solder paste printer, SPI solder paste thickness detector, multi-temperature zone reflow solder equipment, 3D AOI optical inspection equipment, X-ray inspection equipment, roaster, dry ice cleaning machine, etc.
20 highly precise automatic production lines, including fully-automatic loader, fully-automatic solder paste printer, SPI solder paste thickness detector, multi-temperature zone reflow solder equipment, 3D AOI optical inspection equipment, X-ray inspection equipment, roaster, dry ice cleaning machine, etc.

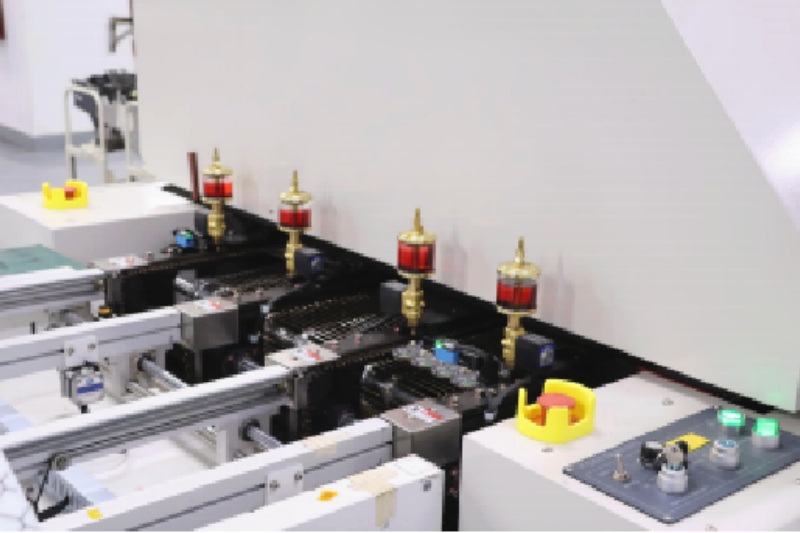

Senju imported solder paste; JTR lead-free reflow oven; computer-based intelligent temperature control for hot air convection in the upper and lower 12 temperature zones (accuracy ± 1 ℃), in order to ensure the quality of products passing through furnace.

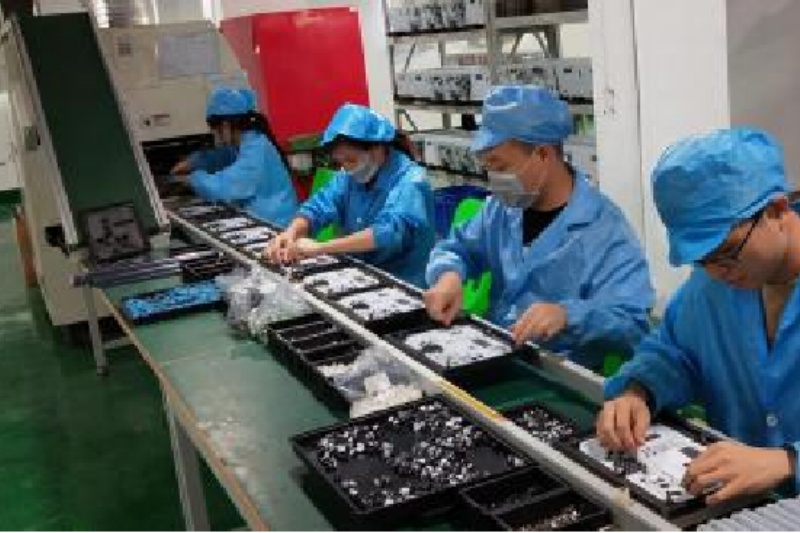

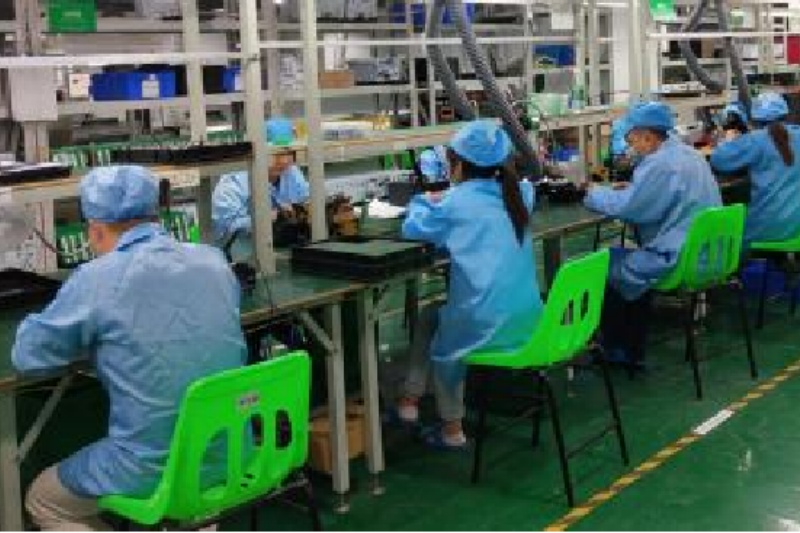

DIP Backhand Welding/Test
Strict IPQC and QA LOT sampling standards, which can ensure the reliability of DIP processing
* 3 complete post-welding and testing production lines; 1 dedicated rear section maintenance line; professional maintenance technical team. The first pass yield (FPY) of products in rear section can reach 99.5%.

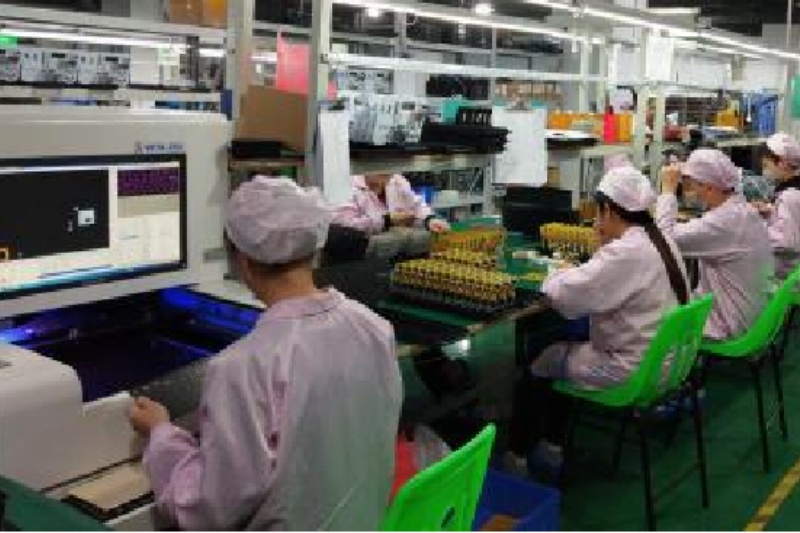

* Plug-in AOI for detecting component errors, omissions and reversing, which contributes to a high FPY of DIP
* Only skilled iron technicians that have received rigorous training are designated for ensuring welding speed and quality
* A temporary storage area with independent markings is set around the cable based on the status of circuit board: To-be-plugged-in, to-be-repaired, waiting for QC inspection, NG products, waiting for QA inspection, etc., to avoid mixed boards

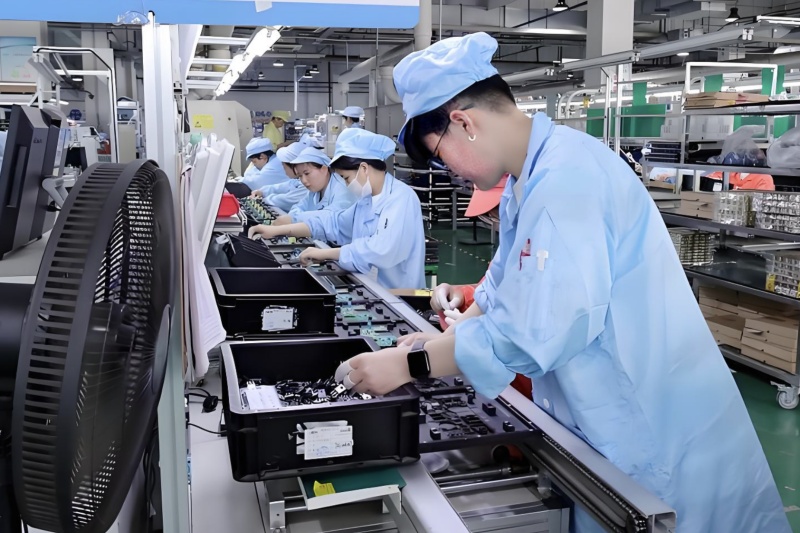

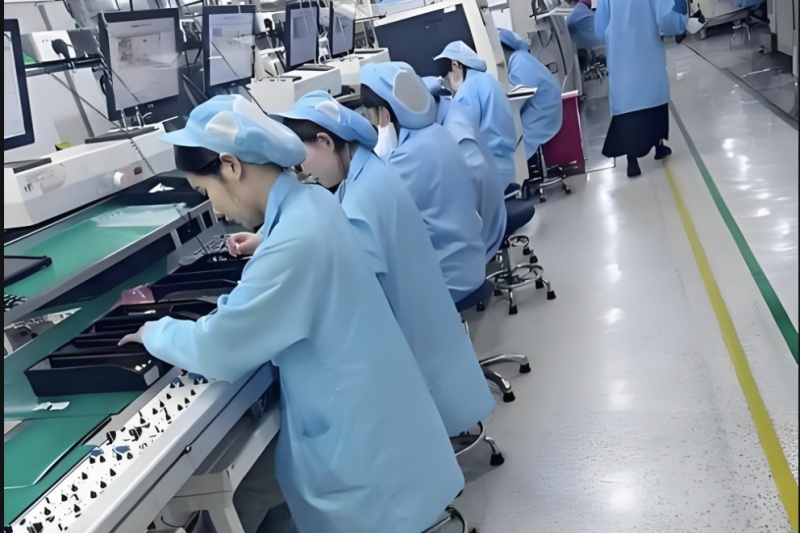

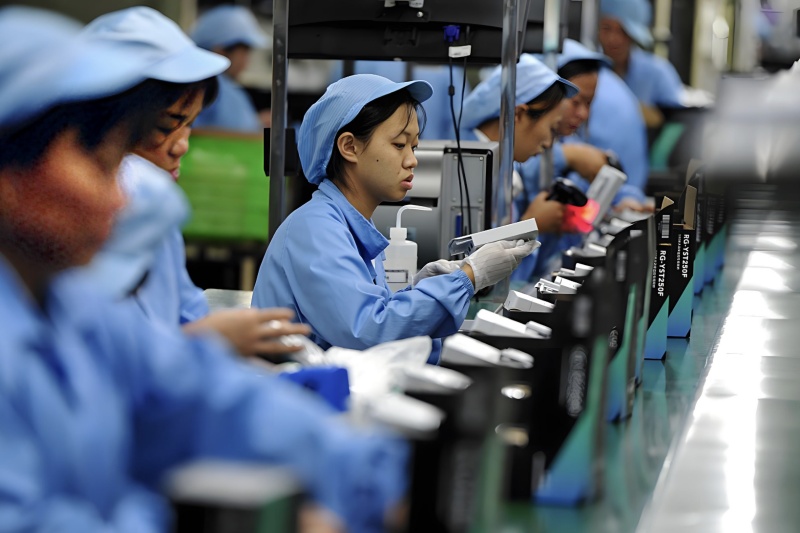

Product Assembly
* 95% of the workers are skillful; one post for one worker; the workers have received strict training and online prevention and correction trainings, thus ensuring their high skills; patrol inspection of the whole production line; timely analysis and statistics on the defective items in assembly process.
* Implement strict SOP operation standards, covering operation techniques, quality standards, tooling, statistical analysis, etc.
* 100% online inspection by QC and spot check by QA according to AQL standards, to timely discover and control defective items in the process.
* The production line comes with complete operating tools, such as electric screwdriver, magnifying glasses, torque meter, dispenser, testing rack, and various kinds of auxiliary inspection equipment. Material areas are divided strictly on the assembly production line to prevent mixing of materials and plates.
* Workers with rich experience in assembling precise and complex products
Product Assembly
Senior supply chain team, which makes procurement based on needs.
Selection of full range of BOM components from the professional and reliable original factory and Level 1 agents.
Constant temperature and humidity, dust-proof and anti-static.

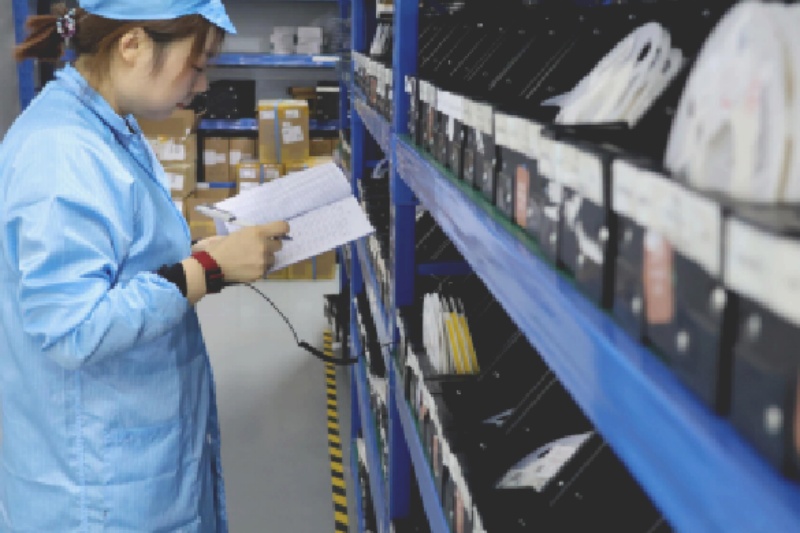

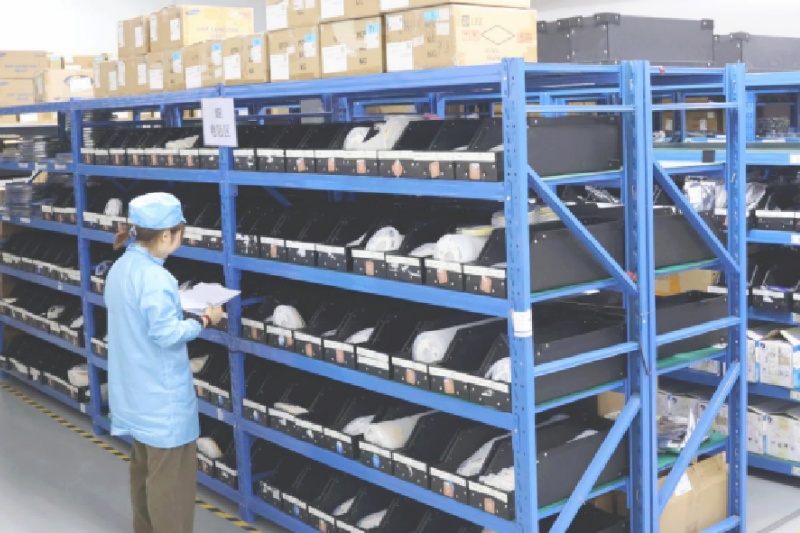

Storage warehouses of materials supplied by customers
can satisfy the need of production, and storage of customers' components.
Requirements for Gerber files
ZIP and RAR files are accepted only, with a maximum file size of 20MB.
Copper thickness: 1oz-12oz; min. drilling: 0.2mm; wiring width/safety distance: 0.06/0.06mm; min. solder mask thickness: 0.1mm.
Please email us the Gerber file of the product so that we can offer you an accurate quotation within two working days.
BOM Requirements
Files in the format of CSV, XLS and XLSX are accepted only
User shall provide us with the complete MPN (manufacturer part number) for each part. If not, please provide the purchase link.
We can provide three choices about parts:
- a) The customer provides all components (no handling fees charged).
- b) The Company procures all components.
- c) Some parts are provided by customer and the rest by the Company.
Please email us the BOM so that we can provide an accurate quotation and send a reply within two working days.
Online Message
* Reminder: File upload supports files under 10M, please upload files over 10M via email service@siclinker.com Send it to us
